Model TYE6120
Product size(mm) 232×275×190

Click here to watch video


DefibReady is designed to create a safe and repeatable high-fidelity training situation for medical & nursing students, as well as other primary healthcare workers to perform manual external defibrillation, AED, pacing and monitoring operation. The system consists of a simulated defibrillator, a wearable defibrillation vest and a control system.

Skills Gained

· Defibrillation operation

· Pacing operation

· Monitoring operation

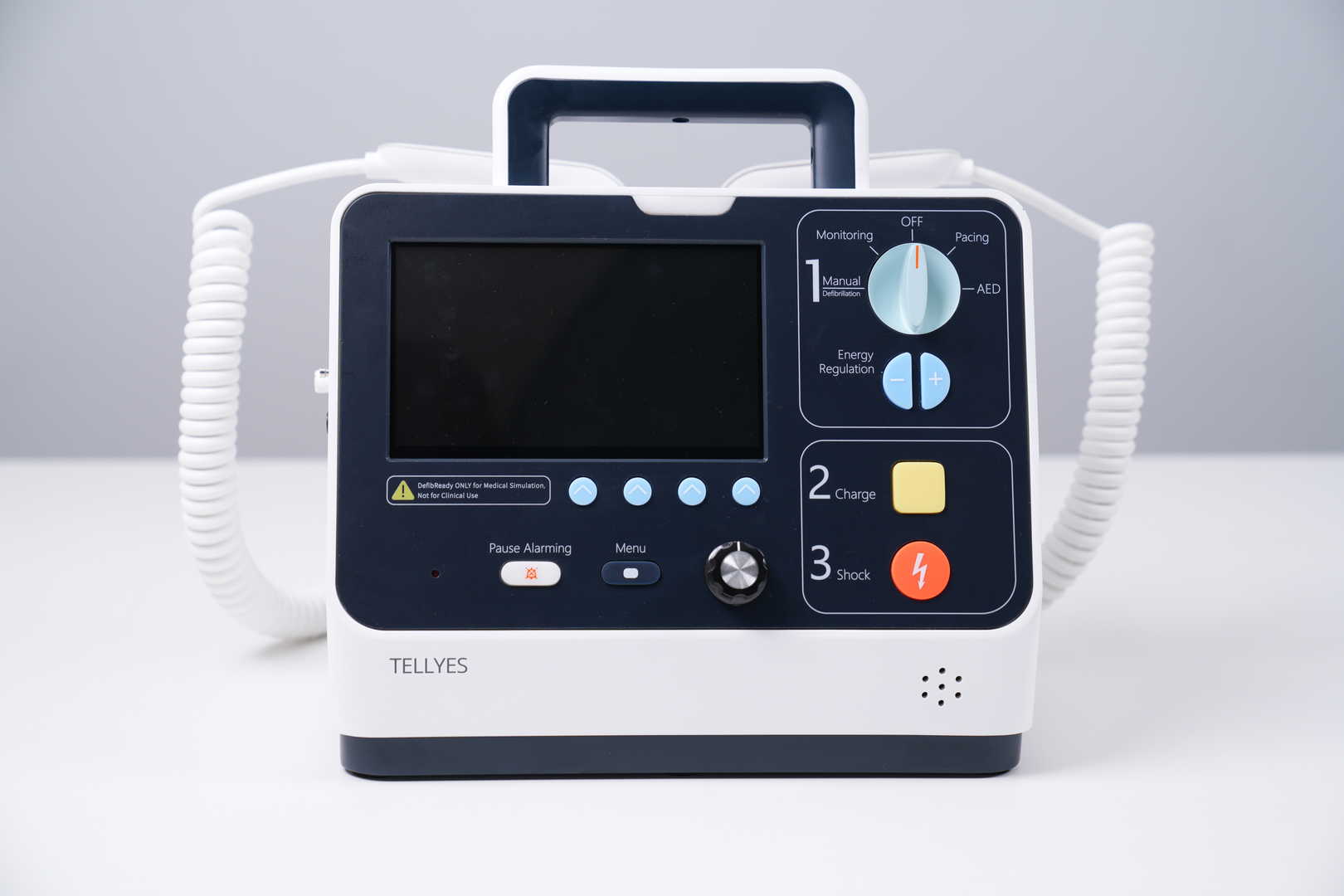

· Almost the same appearance with a real defibrillator

· High-resolution touchscreen for parameters display & setup

· Knobs & buttons can function just as a real defibrillator

· Energy regulation with “””” buttons

· Charging & discharging operations can be done with DefibReady

· Defibrillation energy selection

· No high voltage current, always safe for users

· 4 modes available, including Monitor Mode, AED Mode, Manual Defibrillation Mode, Pacing Mode

· DefibReady has a charging button and there will be charging sound effects just like a real defibrillator

· A button for 2-min alarming pause. Press it under Monitor Mode, alarming light and sound will be turned off, but the parameters in the screen still have alarm flashing

· Menu button for alarm, NIBP setup and log review in Monitor Mode

· Different levels of alarm sounds and alarm light effects

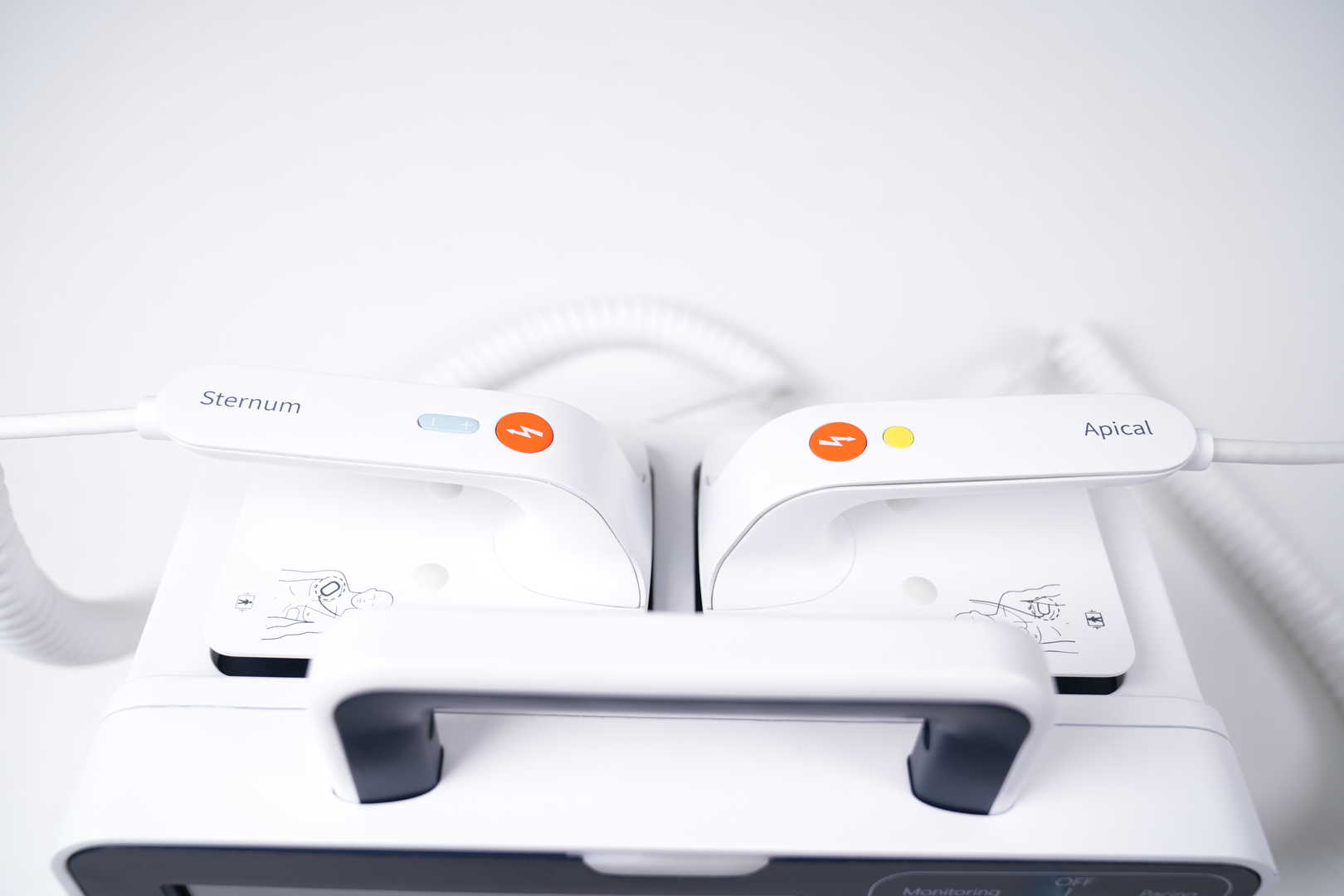

· Realistic defibrillation paddles & pads with visual reminder for right position

· Buttons on defibrillation paddles for quick operation of energy regulation, charging and discharging

· Automatic detection of paddle position, right placement will cause handle vibration during discharging

· Defibrillation paddles can be removed for size change between adult and children operation

· Automatic detection of pads connection in AED Mode. There will be voice prompt if pad falls

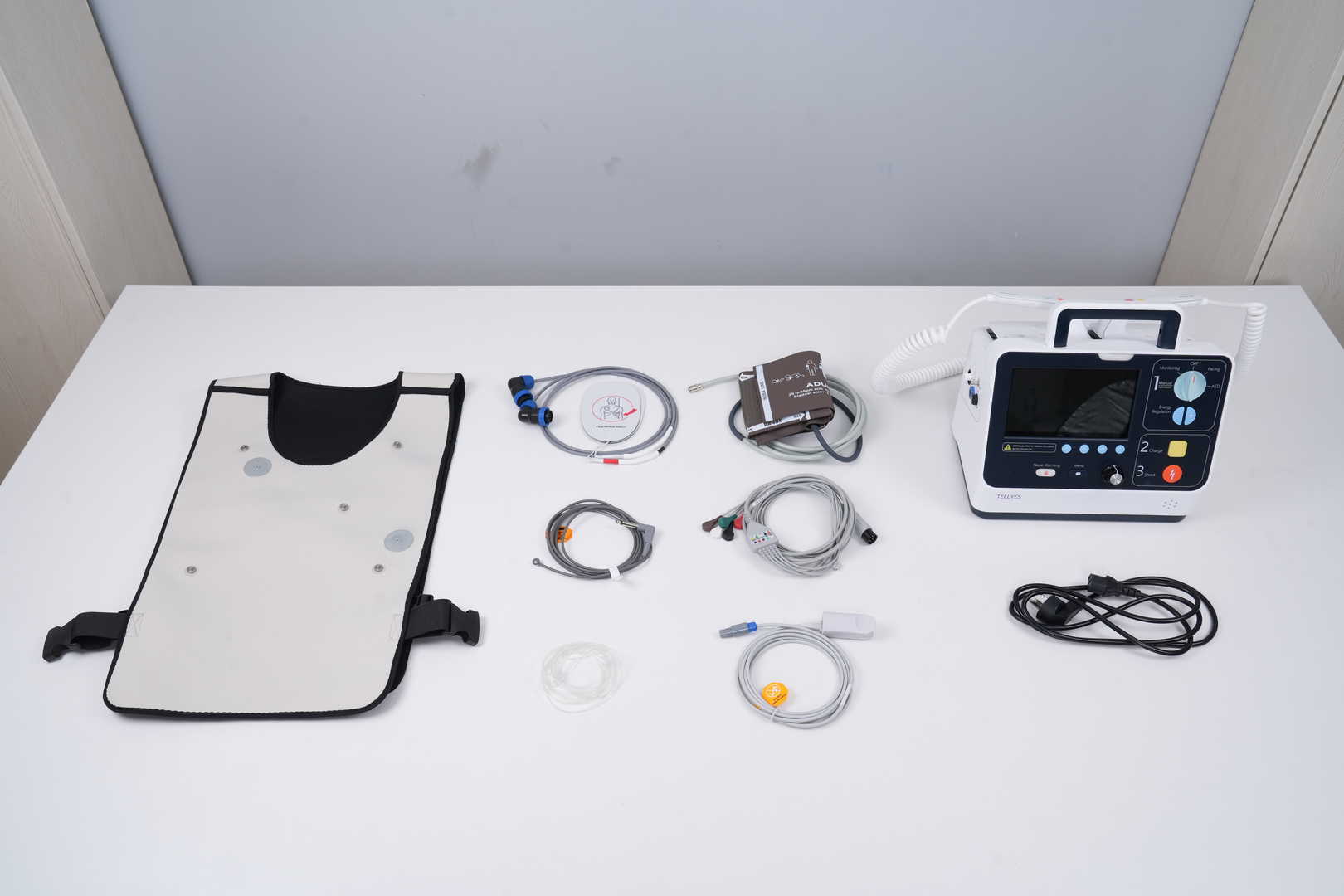

· DefibReady comes with 5-lead cable, a pulse oximetry, a NIBP cuff, a cable temperature probe, and a CO2 sampling cannula

· Real accessory connection experience with DefibReady like a real defibrillator

· Detection of 5-lead ECG detachment

· Detection of pulse oximetry detachment

· Real NIBP cuff air-fill & air-release with audible sound

· External power supply and built-in battery available. A full charge of the built-in battery supports 8-hour use

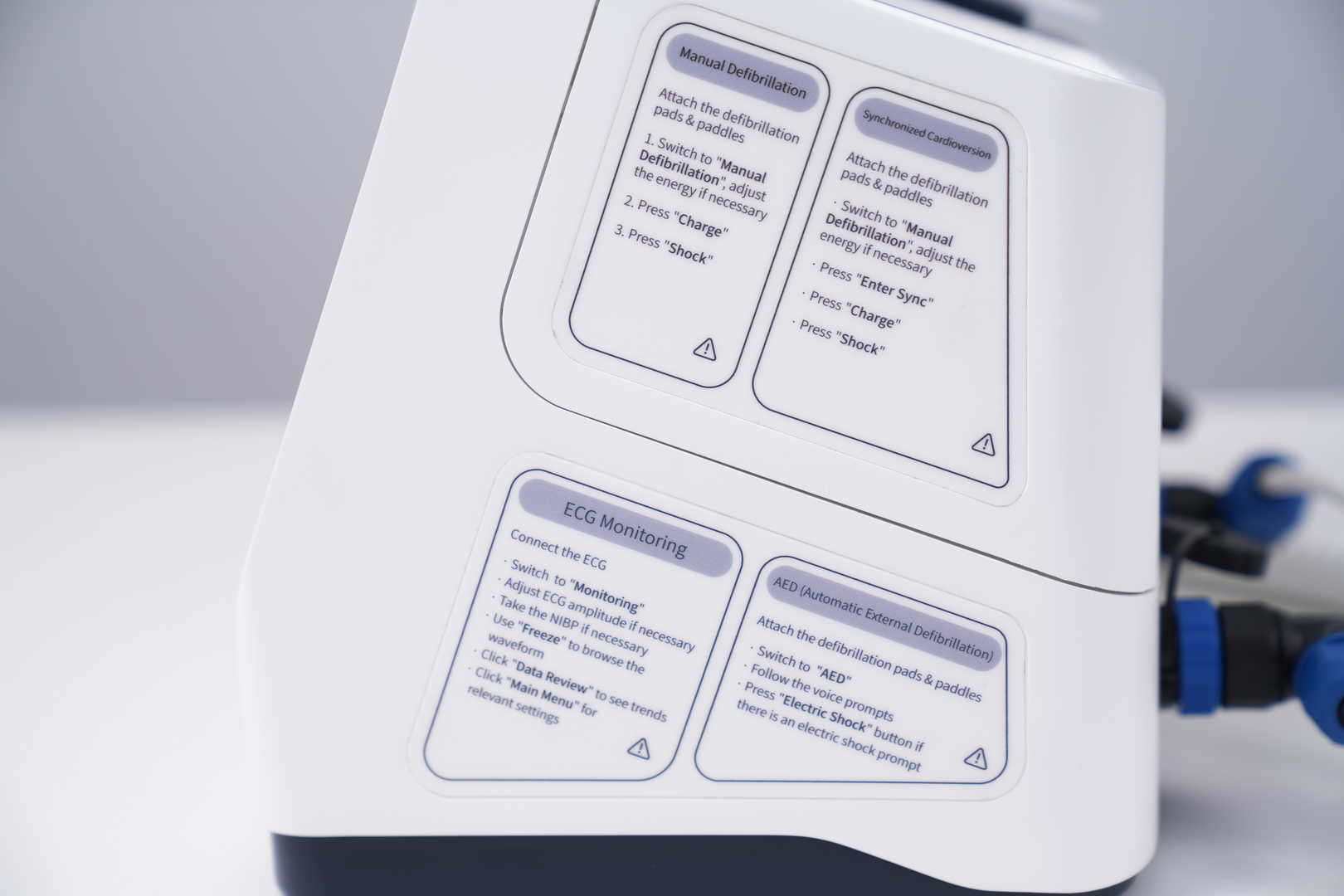

· Instructions for use on DefibReady’s lateral side

Defibrillation Vest

 · Can be worn by SP or manikins

 · Supports connection with 5-lead ECG

 · Supports the use of DefibReady defibrillation paddles & pads

 Control System

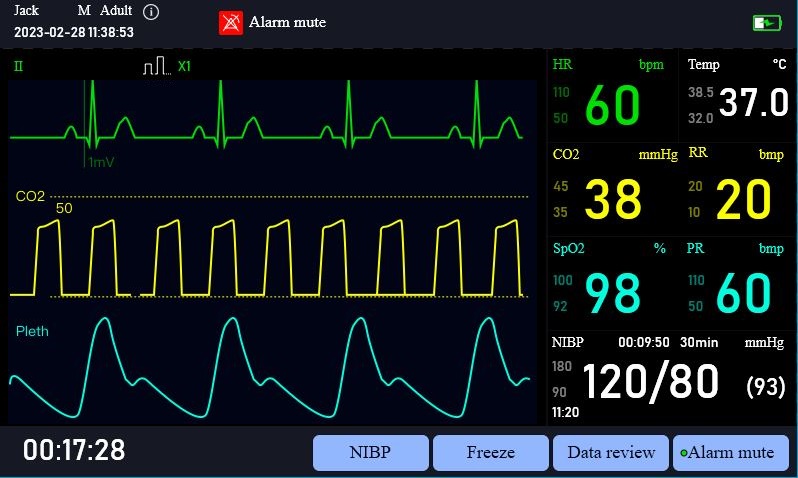

 · Monitoring ECG, EtCO2, Pleth, HR, RR, SpO2, NIBP, etc.

 · Adjustable ECG leads and gains; the gain ranges are×1/4, ×1/2, ×1, ×2, ×4

 · Automatic and manual NIBP measurement available

 · Freeze & data review functions available under Monitor Mode; trend charts and NIBP data can be viewed

 · Alarms can be setup; when a parameter exceeds its alarming range, alarm logs will be generated automatically

 · Status bar will display multiple alarming messages in a loop

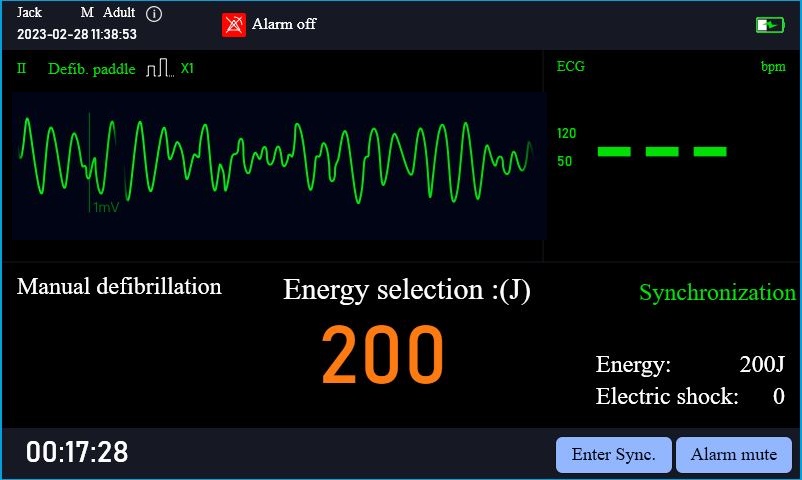

 · Defibrillation energy can be adjusted; display current defibrillation energy

 · There will be a voice prompt when the charging is completed

 · Cumulative number of electric shocks and the energy of the latest electric shock are displayed

 · When in synchronized cardioversion mode, “Synchronization” will appear on the screen

 · ECG waveforms change after successful defibrillation

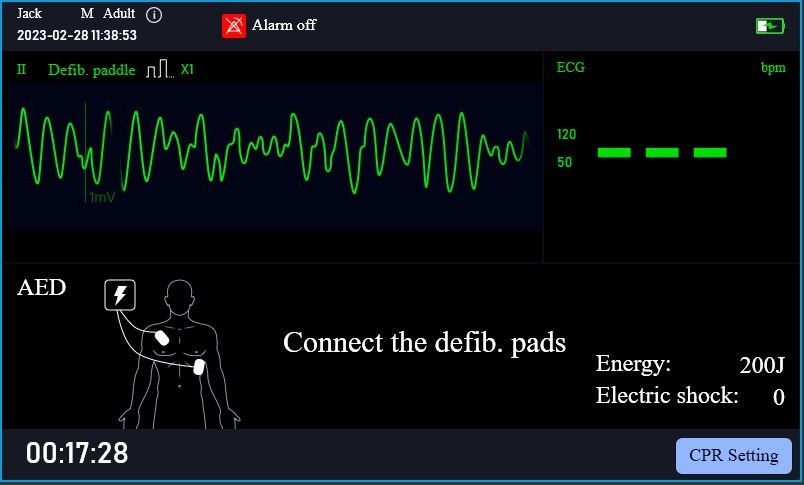

 · Complete process training of AED

 · AED voice and visual guide

 · Intelligent analysis of heart rhythm to indicate whether to perform an electric shock

 · Metronome available for CPR operation

 · Adjustable CPR modes and duration

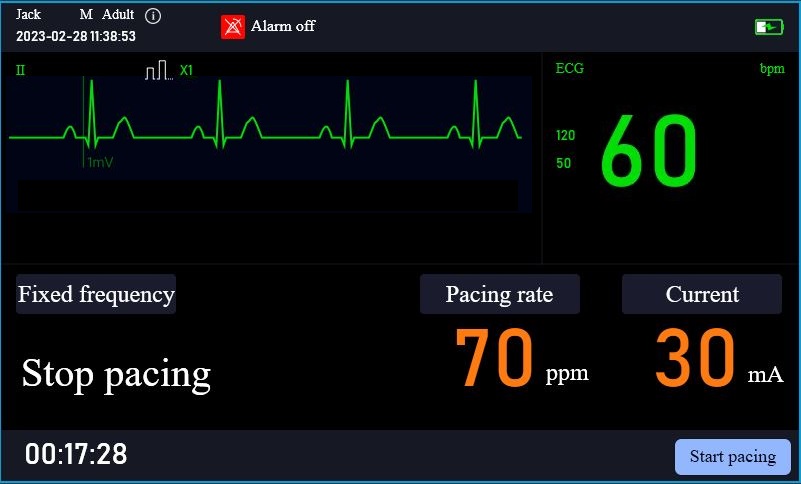

 · On-demand pacing & fixed pacing

 · Web-based instructor software

 · Scan QR code for defibrillator connection & control

 · Built-in 16 defibrillation and pacing cases, including adult and pediatric cases like Atrial Fibrillation, Ventricular Fibrillation, Cardiac Arrest, Pace-making, Tachycardia

 · Instructor software can display the case flow and manually control the case

 · Resuscitation drugs available to enrich the rescue process

 · Compliant with 2020 AHA guidelines

 · Instructor software can view the vital signs of different case states, including ECG, heart rate, EtCO2, respiratory rate, etc.

 · Operation logs can be generated automatically and displayed in instructor software

 · The case result can be survived, dead or treatment stopped
